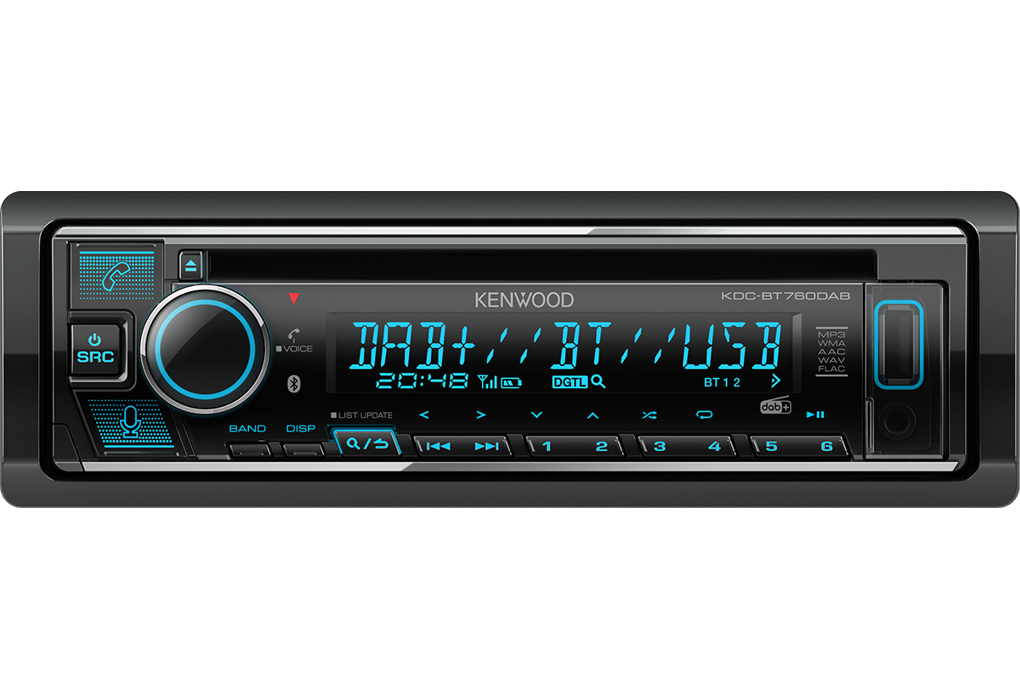

Autoradio 1 Din Cd Usb Bluetooh Dab Alexa KENWOOD KDC-BT760DAB

Autoradio 1 Din Cd Usb Bluetooh Dab Alexa KENWOOD KDC-BT760DAB

Autoradio CD/USB avec radio numérique DAB+, technologie Bluetooth et service vocal Amazon Alexa.



Principales caractéristiques

Radio numérique DAB+, radio FM analogique avec fonctionnalité RDS et réception radio AM.
Technologie Bluetooth pour les appels mains libres et la diffusion de musique.
Utilisez votre smartphone comme une télécommande sans fil avec l'application KENWOOD Remote.
Profitez du streaming audio simplement en basculant entre 5 appareils BT connectés avec Music Mix.
Prêt pour le service vocal basé sur le cloud d'Amazon Alexa.
Lecture de fichiers musicaux MP3 / WMA / AAC / WAV / FLAC.
Processeur de son numérique, alignement temporel et égaliseur 13 bandes pour des améliorations optimales du réglage du son.
2 pré-sorties RCA haute puissance (2,5V) pour connecter plusieurs amplificateurs de puissance.
Grand écran LCD 1,5 ligne avec contraste élevé, grand angle de vision et rétroéclairage à couleurs variables.
Langue du menu en anglais (par défaut), russe, espagnol, français ou allemand.





DIN Size    1 DIN
Detachable Faceplate
    Yes
Key Illumination    Variable LED
Rotary Encoder & Control Knob
    Yes
Dual Accent Key    Handsfree & Voice Assistant
Back-up Memory
    Tuner presets & menu settings
Attenuator with Smooth Volume Return    Yes
Touch Sensor Tone    Yes
Digital Clock (24H)    Yes
Clock display when power-off    default off
All-off Select (20/40/60 minutes)    Yes
Built-in Connector
    Mitsumi, 16 pin
ISO connector
    Yes, Mitsumi to ISO cable
Bluetooth unit built-in
    Yes
USB interface x 1    Yes, (Front)
Firmware upgreadable
    Yes
Display Features
Display Type    Liquid Crystal Display (LCD)
Display Layout    2 line text + custom icons
Vertical Aligment Liquid Crystal Display    Yes
Display Illumination    Variable by RGB LED
Dimmer Control    Manual / Set by Timer
Brightness control    0 - 31 steps
Demo Mode
    Yes
Menu text in selectable language
    English(default) / Spanish / French / German / Russian
Cosmetics features
Dress plate    Piano Black
Preset key finish    Piano Black
Escutcheon finish    Piano Black
Volume & operation knob or wheel    Transparant Lighting & Chrome Finished Ring
Triangle Illumination    Red LED
Front terminals dust cover    Yes
Key illumination    Variable by RGB LED
Illuminated front USB port    Variable by RGB LED
Brightness Control (Key)    0 - 31 step
Dimmer Control (Key)    Manual / Set by Timer
Variable color illumination
    Yes
Color Zone Concept
    2 zone colour control
Brightness zone concept    2 zone brightness control
Chrome-finished accents    Volume knod & faceplate
Tuner Features
Station Select
    Manual / Preset
FM Reception    Yes
AM (MW/LW) Reception
    Yes
Tuner Presets (FM/AM)    24 Presets (18FM / 6AM)
Preset memory w/o back-up power
    Yes
Mixed preset memory (FM & AM)
    6 presets
Up/Down Seek/Scan
    Yes
Automatic Memory Entry (AME)
    Yes
FM Stereo / Mono Selector
    Yes
Radio Data System
    Yes
Radio Text Plus
    Yes
Traffic Information    Yes
Local search    Yes
AF Regional    Selectable: AF/AF Reg/OFF
Auto TP search
    Yes
Enhanced Other Networks Function (EON)
    Yes
Program Type Function (PTY)
    Yes
CE DAB tuner features
DAB+ tuner built-in
    Yes
Digital Radio Certification Mark
    Yes
Intelligent seek    Yes
Ensemble seek    Yes
Tuning mode / Seek mode    Auto1/Auto2/Manual
Service preset    6 ch * 3 bank presets,
Auto service memory (AME)    Yes
Service list by alphabet order    Yes
Preset list    Yes
Related service    Yes
Audio interrupt standby by PTY    Yes
Audio interrupt standby by announcement    Yes
DAB-RDS integrated TI    Yes
Traffic Information
    Yes
DAB-AF (Alternative frequency)    Yes
Announcement Switching (ASW) Select    Yes
DMB Audio (Digital multimedia broadcasting)    Yes
Soft linking
    Yes
Antenna power supply on/off switch    Yes
DAB antenna included    Yes
Playable Audio File
AAC (*.m4a) files are playable
    USB
AAC (*.aac) files are playable
    CD/USB
MP3 files are playable
    CD/USB
WMA (.wma) files are playable
    CD/USB
WAV (.wav) files are playable
    USB
FLAC files are playable
    USB
CD Features
CD-R/RW Compatible
    Yes
MP3, WMA & AAC playback
    Yes
CD Text with special Character Support
    English(default) / Spanish / French / German / Russian / Greek
D.A.C. processing    24bit
0 bit Mute
    Yes
Random Function    DISC Random/Random OFF
Repeat Function    Track Repeat/All Repeat
USB Features
USB terminal
    Yes, Front with dust cover
USB Type
    2.0 High speed
MP3, WMA, AAC, WAV, FLAC playback    Yes
Repeat/Scan/Random search    Yes
Repeat / Random Play    Yes
Direct search    Yes
Resume play    Yes
Time code display    Yes
1,5A Smartphone Quick Charge
    Yes
iPod Features
Made for iPod & iPhone *
    Yes
USB Direct Control (Audio, 1 wire, Lightning-connector)    with optional cable KCA-iP103
Music playback    Yes
Alphabet search
    Yes
Skip search
    Yes
Related search    Yes
Direct Search    Yes
iPod EQ Mode    Yes
Control by hand
    Yes
App & iPod control mode
    Yes
Spotify App Link    Yes
iAP over Bluetooth    Yes
iTunes Radio App
    yes iAP1
Reverse browsing    Yes
Battery charge + power control    Yes
* Always update to latest Apple firmware
Audio Features
Maximum Output Power    50W x 4
MOSFET Power IC    Yes
Auxiliary Type
    Mini-jack, front panel
Pre-out    2 RCA
Pre-out Output Level    2.5V
Preout Rear / Subwoofer Switchable
    Yes
Subwoofer Reference Level Adj.    Yes
2-Way X'over network    Yes
3-Way x'over (bi-amp connection)    Yes
Tone Control / Easy EQ    13 band, 8 presets
Balance/Fader/Loudness Control    Yes
Bass Boost Circuit
    Off/+1/+2/+3/+4/+5
Att.(-20dB) with smooth Volume Return    Yes
Easy 3-band EQ mode    Yes
Graphic Equalizer + Preset    13-Bands Graphic Equalizer with 8 Presets.
Digital Sound Processor (DSP) Built-in    Yes
Digital Time Aligment (DTA)    Yes
Low- & High-pass Filter    Yes
Speaker Size Control
    Yes, Front/rear/subwoofer independently
Kenwood Sound Reconstruction    Yes
Sound Reconstruction
    Yes
Space Enhancer    Yes
Realizer    Yes
Stage EQ    Yes
Drive EQ
    Yes
Bluetooth General Features
Max num. of regist. phones for HFP & A2DP    5 phones
Hands Free Profile with High Sound Quality
    HFP V1.7.1
Max num. of regist. phones for HFP    5 phones
2 phones full time connection
    Yes
Audio Streaming (A2DP)
    Yes
High Quality Audio Streaming
    SBC/AAC
Max num. of regist. units for A2DP    5 units
Serial Port Profile (SPP)
    Yes
Phonebook Access Profile (PBAP)
    Yes
iPhone & Android automatic pairing via USB
    Yes
KENWOOD Remote App Ready

KENWOOD Music Mix Support
    Yes
Amazon Alexa ready
    Yes
Catchphone / Call Waiting
    Yes
Private mode    Yes
Alphabet Search (Phonebook)    Yes
Noise Canceller    Yes
Echo Canceller    Yes
Phone device status display    Yes
Audio device status display    Yes
Signal strength display    Yes
Remaining battery display    Yes
Bluetooth Paring Indicator    Yes
High-quality noise canceling microphone    Rear Wired
Bluetooth firmware upgradeable
    Yes
* depends on phone model/make
    & Kenwood unit
Connectivity
Front USB & AUX Input
    Yes
OEM Wired Remote Control ready
    Yes
DC-Cord    Mitsumi to ISO
Power Control (P.CON) wire
    Yes
Amplifier pre-out    2 x RCA: Front + Rear/Sub (selectable)
FM Antenna Input    JASO connector
DAB Aerial input    SMB connector
External microphone input    3,5mm mini-jack
Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step)    Yes
FM Usable Sensitivity    0.56μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity    1.58μV/75ohm (S/N 46dBf)
FM Frequency Response    30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono)    68dB
FM Stereo Separation (1kHz)    40dB
MW range: 531kHz - 1611kHz (9kHz step)    Yes
MW Usable Sensitivity    28.5μV
LW range: 153kHz - 279kHz (9kHz step)    Yes
LW Usable Sensitivity    45μV
DAB Tuner specifications
Band III - Frequency range    174.928 MHz - 239.2MHz
Sensitivity    - 100dBm
Signal to noise ratio    90dB
DAB Aerial Connector Type    SMB
Output Voltage    14.4V (10.5V to 16V allowable)
Maximum Current    < 100 mA
Codec Specs
MP3 Format    MPEG 1/2 Audio Layer 3-Files
WMA Format    in accordance with Windows Media Audio
AAC Format    AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files
WAV Format    RIFF waveform Audio Format (only for LinearPCM)
FLAC Format    FLAC files (up to 96kHz/24bit)
CD Specifications
Laser Diode    GaAIAs
Digital Filter(D/A)    8 Times Over Sampling
Digital/Analogue Converter    24 Bit
Wow & Flutter    Below Measurable Limit
Frequency Response    20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion    0.01% (1kHz)
Signal to Noise Ratio    97dB (1kHz)
Dynamic Range    92dB
Channel Separation    90dB
MP3 Decoder    Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder    Compliant with Windows Media Audio
AAC Decoder    AAC-LC".aac" Files
USB Specifications
USB Version compatibility    USB 1.1 / 2.0 full speed
File System    FAT 32 / 16 / 12
Maximum Supply current    1500mA
D/A Converter    24bit
MP3 Decode    Compliant with MPEG-1/2 Audio Layer-3
WMA Decode    Compliant with Windows Media Audio
AAC Decode    "m4a" & "aac" file encoded by AAC-LC format
WAV Decode    Linear - PCM Files
flac Decode    FLAC files up to 96kHz/24bit
Audio Specifications
Maximum Power    50W x 4
Output Power (DIN45324,+B=14.4v)    22W x 4
Preout Level    2500mV / 10kOhm,
Preout Impedance    ≤ 600Ohm
Speaker Impedance    4Ohm ~ 8Ohm
AUX Frequency Response    20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage    1000mV
AUX Input Impedance    30kOhm
DSP Specifications
Frequency band - Front    62.5Hz ~ 16kHz
Equalizer Gain    –9db ~ +9db
Q Control    0.25/ 0.50/ 1.00/ 2.00
High Pass Filter frequency    Through/50 ~ 220 (Hz)
High Pass Filter Slope    -12/-18/-24 dB/Oct
Low Pass Filter frequency    50 ~ 120(Hz)/Through
Low Pass Filter Slope    -12/-18/-24 dB/Oct
Time Alignment    0 — 610cm(2 cm step)
Car type control    ► OFF
► COMPACT
► Full SIZE CAR
► WAGON
► MINIVAN
► SUV
► MINIVAN LONG
Equalizer Type    Graphic
Frequency band    13 bands
Bluetooth specifications
Technology    Bluetooth V4.2
Frequency    2.402 - 2.48 GHz
Output power    +4dBm(max), 0dBm (AVE) power class 2
Maximum range    Line of sight approx. 10 meter
Handsfree profile (HFP)    Yes
Serial port profile (SPP)    Yes
Advanced audio distribution profile (A2DP)    Yes
Audio Codec    SBC/AAC
Audio/Video remote control profile (AVRCP)    Yes
Phonebook access profile (PBAP)    Yes
Accessories
Release keys    2 pieces
Escutcheon    Yes
Installation Sleeve    Yes
DC cord (Mitsumi to ISO)
    15 cm
DAB antenna    with 3 m cable
Handsfree Microphone    with 3 m cable
General Specifications
Operating voltage    14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption    10A
Dark Current Consumption    Below 1mA
Dimensions (WxHxD)    182 x 53 x 155.5mm
Weight    1200 gr.
Operation Temperature Range    -10°C ~ 60°C
Instruction Manuals    Multi-language quick Guide
